Product Details

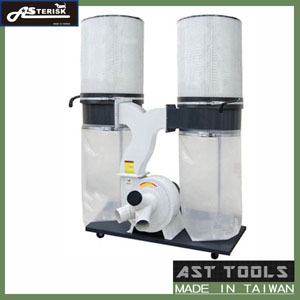

3HP Dust Collector with Dual Canisters

Model：AS-0402

Product Introduction

3HP Dust Collector with Dual Canisters

The canisters are made of spun bond polyester and feature 6 times the filtering area of standard cloth bags. Convenient canister cleaning handles allow for easy removal of caked on dust with a simple clockwise or counter clockwise half turn.

The steel duct arm from the aluminum impeller to the canisters improves air flow and allow for quick removal of large chips.

Specification

Motor	3HP, 220V, 60HZ, TEFC, 12 Amps
Motor Speed	3450 RPM
Air Suction Capacity	2,320 CFM
Static Pressure	15.5"
Inlet	7" main with removable "Y" (three 4" inlets)
Noise Level	85 dB
Base Measurements	39" x 31 1/2" x 69"
Weight	85 kg (189 lbs)

● Made in Taiwan
● One Year Warranty
